HGM German Version Raymond Mill-HXZG

HGM German Version Raymond Mill

00:13

HGM series German Raymond mill is a new product with high technical level developed by Hongxing Group Research Institute on the basis of more than 40 years of experience in grinding equipment research and development, according to the actual situation of users using grinding equipment for the development of grinding industry, absorbing sophisticated and mature grinding technology and concept at home and abroad.

request a quote e-mail

Advantages

Split modular structure, easy maintenance
Coupling reducer transmission form, compact structure
Brand reducer, reliable quality
Separate grinding roller, special wear-resistant shovelhead structure, improve the grinding efficiency, but also reduce the replacement cost of wear parts by more than 50%.
With no resistance volute and curved air duct, the wind resistance at the air inlet of the entire closed-circuit circulation system is greatly reduced, thereby increasing the production capacity by 15%.
Add large cyclone powder collector, combined with closed air feeder, greatly improve the yield of powder, reduce the return of powder.

Completely new design of HXZG

Split Modular Design
Resistance-Free Volute with Curved Air Duct

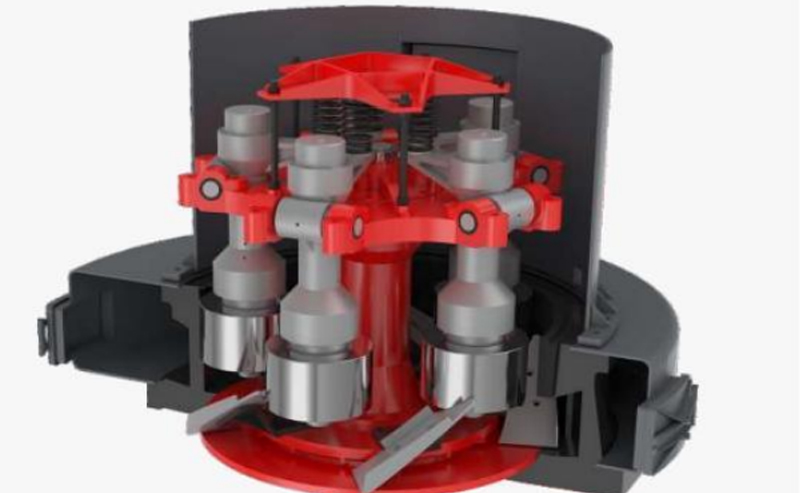

Separate Grinding Roller, Special Wear-Resistant Shovel Head Structure

Technical Specifications

Model	Feeding size (mm)	Finished product size (mm)	Capacity (t/h)	Grinding ring diameter (mm)	Number of grinding roller	Power of main machine (kW)	Blower power (kW)	Analyzer power (kW)	Transmission type
HGM88	<25	0.25-0.015	0.4-5	908	3	22	22	5.5	V-belt transmission
HGM95	<25	0.25-0.015	0.6-7	1006	3	37	37	7.5	V-belt transmission
HGM120	<25	0.25-0.015	1.2-15	1280	3	55	75	15	Reducer transmission
HGM130	<25	0.25-0.038	1.6-21	1400	4	75	90	18.5
HGM138	<25	0.25-0.038	2-25	1510	4	90	110	22
HGM160	<30	0.25-0.038	2.7-28	1770	5	132	160	22/30
HGM175	<35	0.25-0.038	3-35	1900	5	185	200	30
HGM190	<40	0.25-0.038	5-40	2040	4	250/280	250/280	45/55

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Capacity (t/h)	Power of main machine (kW)
HGM88	0.4-5	22
HGM95	0.6-7	37
HGM120	1.2-15	55
HGM130	1.6-21	75
HGM138	2-25	90
HGM160	2.7-28	132
HGM175	3-35	185
HGM190	5-40	250/280

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
