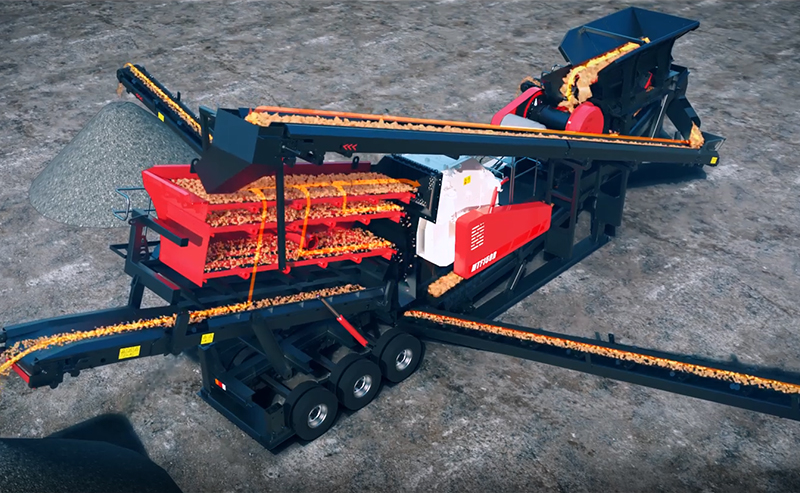

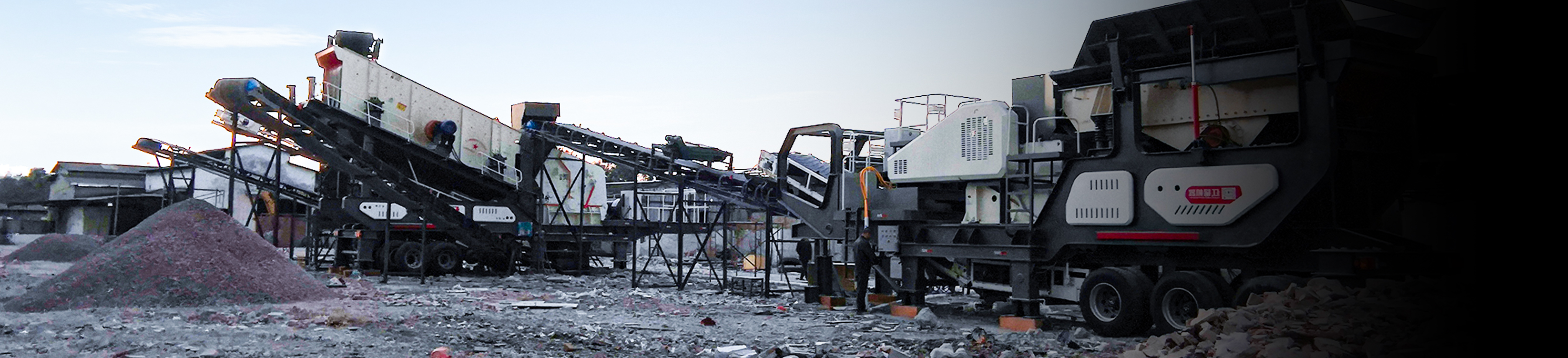

The MTF series of wheel-type mobile production lines fully cover the application fields of hard rock, soft rock,and construction waste with a processing capacity of 100-300 tons per hour. The most prominent advantages of this series of wheeled mobile production lines are: quickly put into production, the equipment can be assembled into a line soon after arriving at the work site. The whole machine has less transportation and disassembly, flexible and convenient movement, and quick installation and debugging. Among them, the small output of 100-150 tons is designed as an all-in-one machine, which has a high degree of integration, low investment cost, small space occupation, and high profit.
The main equipment on the production line are all high-performance machines produced with the latest industry technology, with high efficiency, high output, and stable and reliable operation.
The feeder adopts a vibrating motor to provide excitation force, and accurately controls the feeding amount through a frequency converter to maximize the production capacity of the equipment.
The jaw crusher adopts a wedge to adjust the discharge opening, which is easy to operate. The integral motor bracket, the belt has good force and long life.
The cone crusher adopts an automatic control system, which is easy to operate, stable, reliable, high in efficiency and good in particle shape.
The impact crusher adopts the refined design of the rotor and cavity, the speed and power are reasonably matched to meet the different application options of coarse crushing, medium and fine crushing and material recovery.
The vibrating screen adopts thin oil lubrication, and the oil change interval is as long as 1200 hours, thelubrication effect is good, and the equipment downtime is short.
The MTF series mobile production line adopts modular and universal design, with high structural strength and strong versatility.
The feeder adopts frequency conversion control, and the feeding amount of the feeder can be adjusted according to different conditions to give full play to the production capacity of the production line.
The main equipment on the production line are all high-performance machines produced with the latest industry technology, with high efficiency, high output, few failures, convenient operation and maintenance.
The front and back connection design of the maintenance platform is convenient for the operator to observe the equipment operation in time. Inclined up and down escalators, wider pedals, safer and more convenient than upright ladders.
Each equipment of the mobile production line is equipped with a vehicle-mounted belt conveyor, which does not need to be disassembled. Work can be started quickly when arriving at the site, and the work site is clean and orderly.
Each device of the mobile production line is equipped with an independent electronic control system, which is easy to operate. The whole machine can be debugged quickly when it arrives on site.
Technical Specifications
Wheeled Mobile Jaw Crushing Station
Wheeled Mobile Impact Crushing Station
Model | HX938HD86 | HX1149HD98 | HX1349HD110 | HX1349HD125 |
Transportation lenght(mm) | 12600 | 13500 | 14500 | 15200 |
Transportation Width(mm) | 2600 | 2700 | 2800 | 2900 |
Transportation Height(mm) | 3870 | 4200 | 4450 | 4500 |
Maximum Lenght(mm) | 12500 | 14000 | 16100 | 16700 |
Maximum Width(mm) | 4100 | 4500 | 5100 | 5100 |
Maximum Height(mm) | 4100 | 4900 | 5000 | 5300 |
Weight(t) | 39 | 57 | 55 | 65 |
Tire Configuration | Dualaxial | Triaxial | Triaxial | Triaxial |
Jaw Crusher | HD86 | HD98 | HD110 | HD125 |
Maximum Feeding Size(mm) | 500 | 550 | 660 | 800 |
Discharge opening range | 50-150 | 75-175 | 100-200 | 125-225 |
Capacity(t/h) | 85-275 | 110-350 | 215-510 | 280-650 |
Vibrating Feeder | ZSW380×95 | ZSW420×110 | ZSW490×130 | ZSW490×130 |
Main Belt Conveyor | B800×8.5m | B1000×9.5m | B1000×11m | B1200×11m |
Side-opening Belt conveyor(optional) | B500×3m | B650×3.5m | B650×4m | B650×4m |
Gensrt(optional) | 200KW | 250KW | 270KW | 400KW |
Iron separator(optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-10 | RCYD(C)-12 |
Model HX938HD86 and HX1149HD98
Model | HX938HD86 | HX1149HD98 |
Transportation lenght(mm) | 12600 | 13500 |
Transportation Width(mm) | 2600 | 2700 |
Transportation Height(mm) | 3870 | 4200 |
Maximum Lenght(mm) | 12500 | 14000 |
Maximum Width(mm) | 4100 | 4500 |
Maximum Height(mm) | 4100 | 4900 |
Weight(t) | 39 | 57 |
tIRE Configuration | Dualaxial | Dualaxial |
Jaw Crusher | HD86 | HD98 |
Maximum Feeding Size(mm) | 500 | 550 |
Discharge opening range | 50-150 | 75-175 |
Capacity(t/h) | 85-275 | 110-350 |
Vibrating Feeder | ZSW380×95 | ZSW420×110 |
Main Belt Conveyor | B800×8.5m | B1000×9.5m |
Side-opening Belt conveyor(optional) | B500×3m | B650×3.5m |
Gensrt(optional) | 200KW | 250KW |
Iron separator(optional) | RCYD(C)-8 | RCYD(C)-10 |
Model HX1349HD110 and HX1349HD125
Model | HX1349HD110 | HX1349HD125 |
Transportation lenght(mm) | 14500 | 15200 |
Transportation Width(mm) | 2800 | 2900 |
Transportation Height(mm) | 4450 | 4500 |
Maximum Lenght(mm) | 16100 | 16700 |
Maximum Width(mm) | 5100 | 5100 |
Maximum Height(mm) | 5000 | 5300 |
Weight(t) | 55 | 65 |
Tire Configuration | Dualaxial | Dualaxial |
Jaw Crusher | HD110 | HD125 |
Maximum Feeding Size(mm) | 660 | 800 |
Discharge opening range | 100-200 | 125-225 |
Capacity(t/h) | 215-510 | 280-650 |
Vibrating Feeder | ZSW490×130 | ZSW490×130 |
Main Belt Conveyor | B1000×11m | B1200×11m |
Side-opening Belt conveyor(optional) | B650×4m | B650×4m |
Gensrt(optional) | 270KW | 400KW |
Iron separator(optional) | RCYD(C)-10 | RCYD(C)-12 |
Model | HX938F1210 | HX938F1214 | HX1149F1315 | HX938F1110 | HX1349F1315 |
Transportation lenght(mm) | 12000 | 12000 | 13900 | 15450 | 15450 |
Transportation Width(mm) | 2550 | 2550 | 2900 | 2950 | 2950 |
Transportation Height(mm) | 3900 | 3900 | 4450 | 4500 | 4500 |
Maximum Lenght(mm) | 12500 | 12500 | 13900 | 15450 | 15450 |
Maximum Width(mm) | 3250 | 3260 | 3250 | 3250 | 3250 |
Maximum Height(mm) | 5100 | 5200 | 5200 | 5200 | 5200 |
Weight(t) | 39 | 44 | 54 | 62 | 62 |
Impact crusher | PE-1210 | PE-1214 | PF-1315 | HD1110 | HD1315 |
Maximum Feeding Size(mm) | 350 | 350 | 500 | 400 | 700 |
Capacity(t/h) | 70-130 | 100-180 | 130-250 | 112 | 280 |
Vibrating Feeder | ZSW950×3800 | ZSW950×3800 | ZSW110×4900 | ZSW130×4900 | ZSW130×4900 |
Main Belt Conveyor | B800×8.5M | B800×8.5M | B1000×9.5M | B800×11M | B1200×11M |
Side-opening Belt conveyor(optional) | B500×3.2m | B500×3.2m | B650×4m | B650×4m | B650×4m |
Gensrt(optional) | 320KW | 320KW | 400KW | 320KW | 440KW |
Iron separator(optional) | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-8 | RCYD(C)-12 |
Model HX938F1210 and HX938F1214 and HX1149F1315
Model | HX938F1210 | HX938F1214 | HX1149F1315 |
Transportation lenght(mm) | 12000 | 12000 | 13900 |
Transportation Width(mm) | 2550 | 2550 | 2900 |
Transportation Height(mm) | 3900 | 3900 | 4450 |
Maximum Lenght(mm) | 12500 | 12500 | 13900 |
Maximum Width(mm) | 3250 | 3260 | 3250 |
Maximum Height(mm) | 5100 | 5200 | 5200 |
Weight(t) | 39 | 44 | 54 |
Impact crusher | PE-1210 | PE-1214 | PF-1315 |
Maximum Feeding Size(mm) | 350 | 350 | 500 |
Capacity(t/h) | 70-130 | 100-180 | 130-250 |
Vibrating Feeder | ZSW950×3800 | ZSW950×3800 | ZSW110×4900 |
Main Belt Conveyor | B800×8.5M | B800×8.5M | B1000×9.5M |
Side-opening Belt conveyor(optional) | B500×3.2m | B500×3.2m | B650×4m |
Gensrt(optional) | 320KW | 320KW | 400KW |
iron separator(optional) | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 |
Model HX938F1110 and HX1349F1315
Model | HX938F1110 | HX1349F1315 |
Transportation lenght(mm) | 15450 | 15450 |
Transportation Width(mm) | 2950 | 2950 |
Transportation Height(mm) | 4500 | 4500 |
Maximum Lenght(mm) | 15450 | 15450 |
Maximum Width(mm) | 3250 | 3250 |
Maximum Height(mm) | 5200 | 5200 |
Weight(t) | 62 | 62 |
Impact crusher | HD1110 | HD1315 |
Maximum Feeding Size(mm) | 400 | 700 |
Capacity(t/h) | 112 | 280 |
Vibrating Feeder | ZSW130×4900 | ZSW130×4900 |
Main Belt Conveyor | B800×11M | B1200×11M |
Side-opening Belt conveyor(optional) | B650×4m | B650×4m |
Gensrt(optional) | 320KW | 440KW |
Iron separator(optional) | RCYD(C)-8 | RCYD(C)-12 |
