PPCS Series Air Box Pulse Dust Collector-HXZG

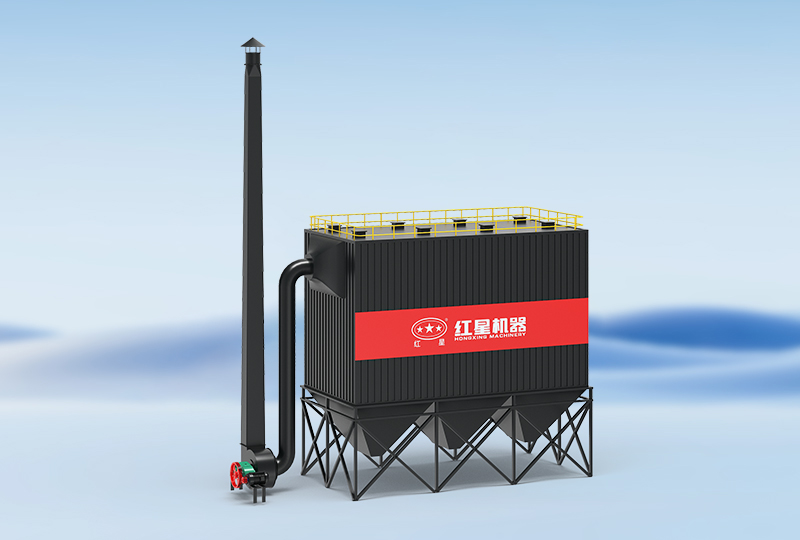

PPCS Series Air Box Pulse Dust Collector

PPCS series air box pulse bag dust collector is widely used in building materials, cement, metallurgy, machinery, chemical and refractory industries, especially for cement plant crushing, packaging, warehouse roof, clinker cooling machine and all kinds of mills and other dust collection system (or dust removal system), strong applicability.

request a quote e-mail

Advantages

Off-line cleaning
Wide application range
Large processing air volume
High dust collection efficiency

Technical Specifications

Model	Air volume (m³/h)	Filtration velocity (m/min)	Total filtra tion area (m²)	Net filtration area (m²)
PPCS 32-3	6900	1.2-2.0	93	62
PPCS 32-4	8930		124	93
PPCS 32-5	11160		155	124
PPCS 32-6	13390		186	155
PPCS 64-4	17300		248	186
PPCS 64-5	22300		310	248
PPCS 64-6	26700		372	310
PPCS 64-7	31200		434	372
PPCS 64-8	35700		496	434
PPCS 96-4	26800		372	279
PPCS 96-5	33400		465	372
PPCS 96-6	40100		557	465
PPCS 96-7	46800		650	557
PPCS 96-8	53510		744	650
PPCS 96-9	60100		838	744
PPCS96-2X5	66900		929	936
PPCS96-2X6	80700		1121	1028
PPCS96-2X7	94100		1308	1215
PPCS96-2X8	107600		1494	1401
PPCS96-2X9	121000		1681	1588
PPCS96-2X10	134500		1868	1775

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
