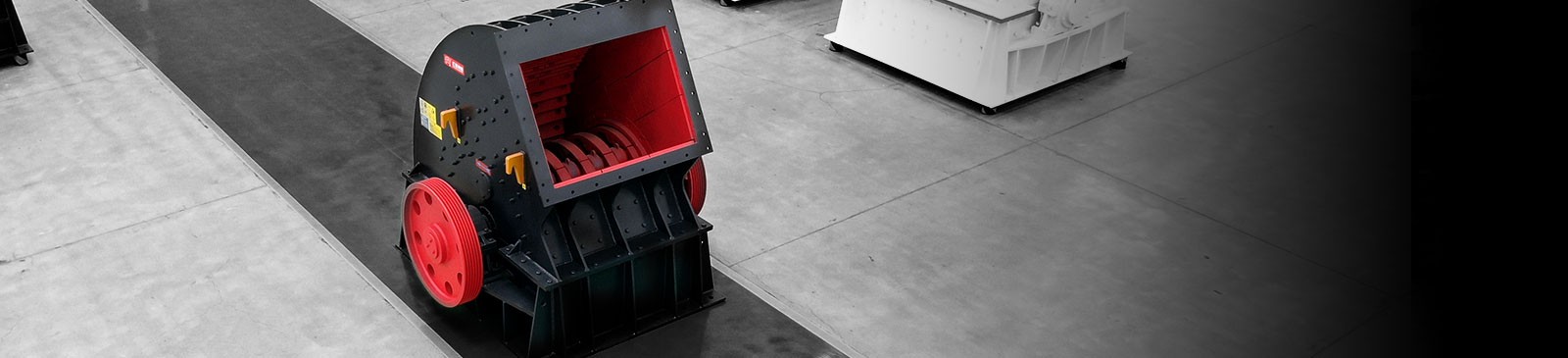

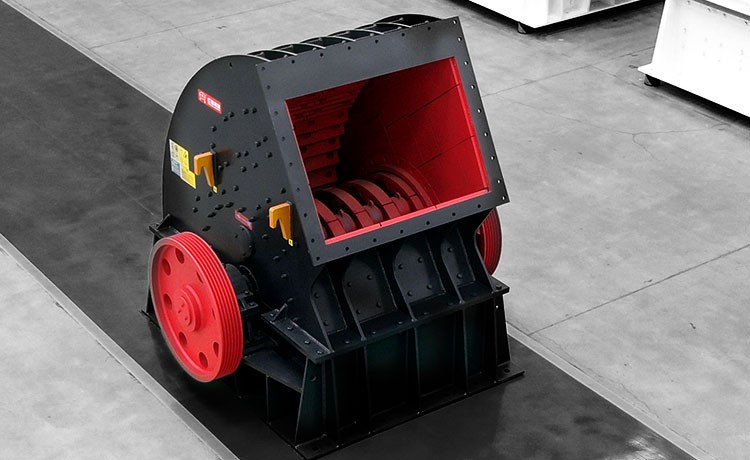

PCZ Heavy Hammer Crusher

PCZ type heavy hammer crusher is widely used in many industries such as mining, smelting, building materials, high-way, railway, water conservancy and chemical industry. It is suitable for crushing various medium hardness and brittle materials with compressive strength less than 150Mpa, such as limestone, bluestone, coal gangue, etc.

request a quote e-mail

Advantages

  • Big crushing ratio, short flow process, less land occupation, less equipment, Easy maintenance;

  • PCZ Heavy hammer crushers,shape up by single crushing without second time, to reduce the cost by around 40%, which ensure energy and investment saving.

Completely new design of HXZG

  •

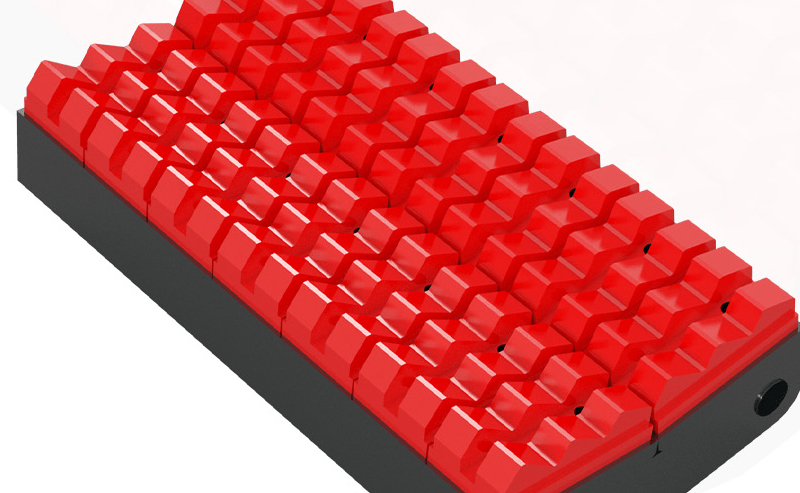

	 Gravity Trough Design

    Gravity Trough Design

  •

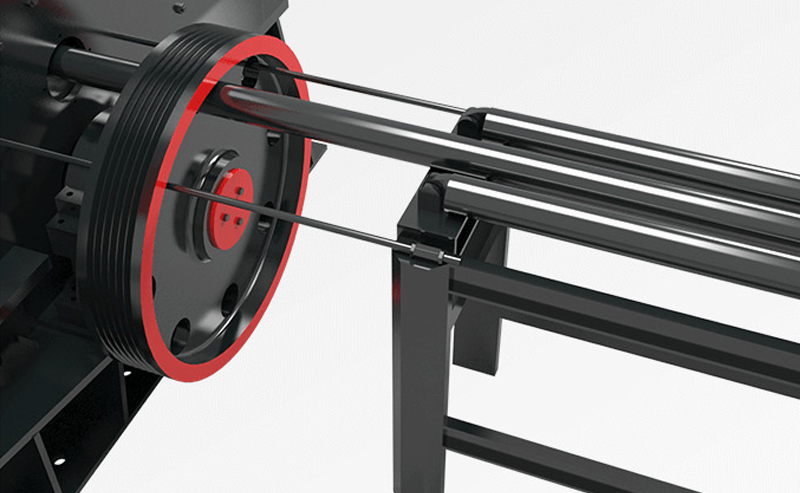

	  Hydraulic Hammer Shaft Device

    Hydraulic Hammer Shaft Device

  •

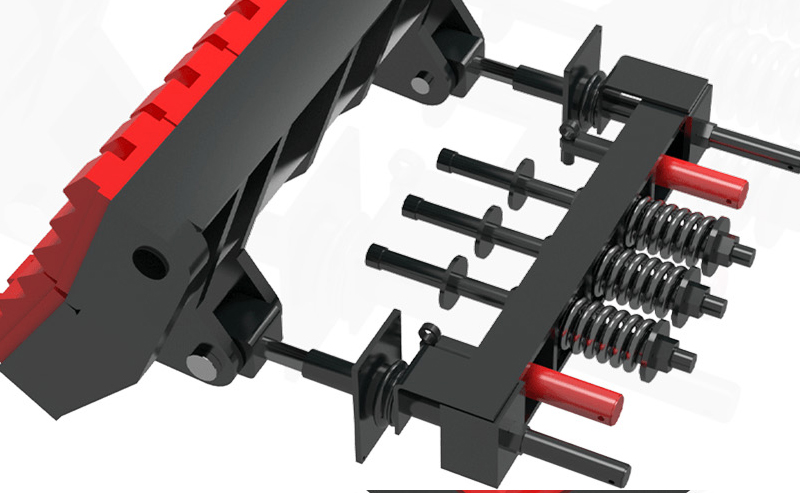

	 Hydraulic Discharge Adiustment Device

    Hydraulic Discharge Adiustment Device

Technical Specifications

Model Rotor diameter×length (mm) Feed Opening Length×width(mm) Feeding Size (mm) Processing Capacity(t/h) Power (kw) Dimensions L×W×H (mm)
PCZ1308 Φ1330×790 870×780 ≤380 60-160 132 2880×2130×2390
PCZ1410 Φ1400×1000 1060×740 ≤450 80-210 2×90(160) 2830×2100×2485
PCZ1610 Φ1600×1000 1090×930 ≤480 100-230 2×132 3370×2415×2750
PCZ1612 Φ1600×1200 1340×1140 ≤500 120-350 2×160 3370×2613×2750
PCZ1615 Φ1600×1500 1570×1140 ≤550 200-550 2×200 3370×2925×2750
PCZ1716 Φ1700×1600 1420×1200 ≤600 400-850 2×250 3520×3000×3210
PCZ1720 Φ1700×2000 2030×1200 ≤650 500-1000 2×400 3670×3390×3330
PCZ1920 Φ1900×2000 1980×1210 ≤750 800-1500 2×500 4490×3910×3600
PCZ2225 Φ2200×2500 2530×1610 ≤1000 1500-3000 1250 4890×5010×4560

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Feeding Size (mm) Processing Capacity(t/h)
PCZ1308 ≤380 60-160
PCZ1410 ≤450 80-210
PCZ1610 ≤480 100-230
PCZ1612 ≤500 120-350
PCZ1615 ≤550 200-550
PCZ1716 ≤600 400-850
PCZ1720 ≤650 500-1000
PCZ1920 ≤750 800-1500
PCZ2225 ≤1000 1500-3000

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
