H5M Series German Version Intelligent Grinding Mill

H5M series German version of intelligent millis a new product with high technical level developed by Hong xing Group's scientific research institute on the basis of more than 40 years of experience in the research and development of mil ing equipment, according to the actual situation of users using mining equipment for many years, in response to the needs of the development of them i ing industry, absorbing the cutting-edge domestic and foreign mature mining technology and concepts, and developing new products with high technological level with great dedication.

Widely used in metallurgy, building materials, chemical industry, mining and other industries, it can process non-flammable and explosive materials with Moh's hardness <9.3 and humidity below 6%, such as limestone, feldspar, calcite, talc, barite, rare earth, bauxite, phospho rite, iron oxide red, dolomite, granite, bituminous coal, gypsum and soon.

request a quote e-mail

Advantages

  • High degree of intelligence

    The grinding line can be paired with PLC system to optimise the mil discharge logic, accurately control the feeding volume, improve production efficiency, simplify the operation process and save alot of manpower.

  • High efficiency and energy saving

    The use of high-pressure centrifugal fans, energy-saving and efficient, can ensure that as table windpower is provided for system operation.

  • Low maintenance cost

    Unique spindle and grinding roller assembly thin oil lubrication structure, lubrication effect is significantly improved, bearing life of up to 3-10 years, refuelling cycle of up to 6 months, maintenance is simple.

  • High grinding pressure, high output

    With the linkage pressure technology of grinding rollers, the crushing pressure can be increased to 2. 5 tonnes, which significantly improves the ablity to crush hard materials, and the capacity of ordinary materials can be increased by more than 10%.

  • High transmission efficiency

    V-belt plus spiral bevel gear drive,compact structure, smooth transmission, lownoise.

  • Clean and environmental protection

    Equipped with special pulse dust collector, the dust removal efficiency can be 99. 9%, the emission concentration is≤10mg/Nm, which is better than the national environmental protection emission standard, and realises dustfree operation in the production workshop.

Completely new design of HXZG

  •
	High-pressure Centrifugal fans

    High-pressure Centrifugal fans

  •

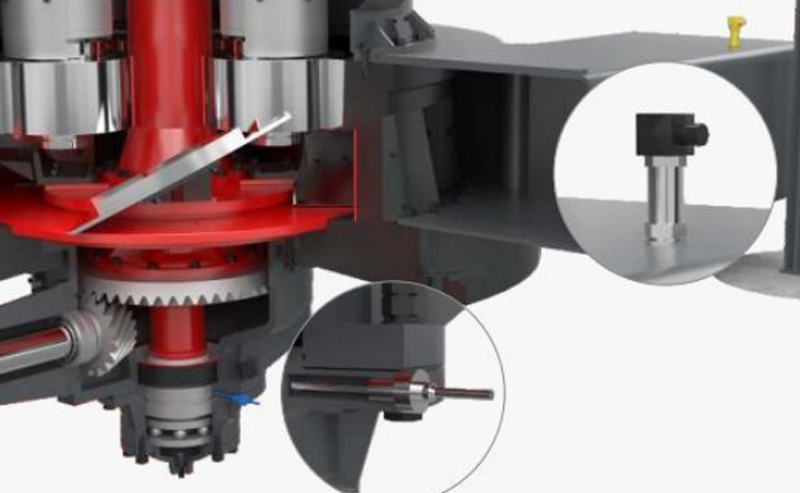

	Thin Oil Lubrication Structure

    Thin Oil Lubrication Structure

  •

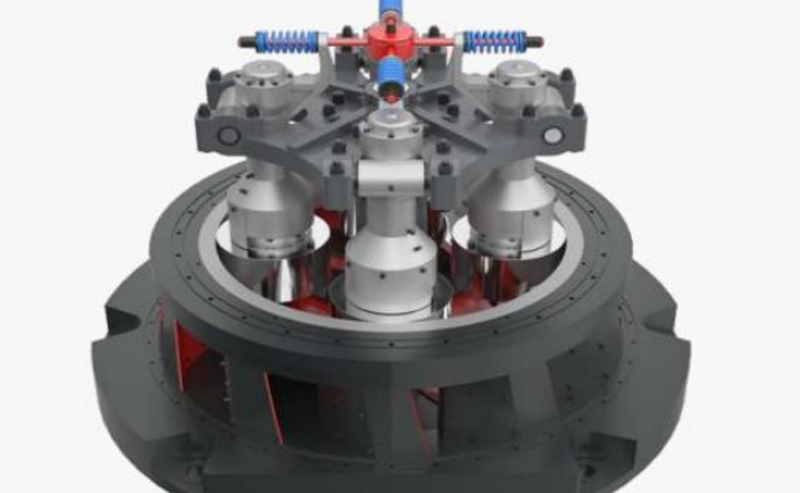

	Grinding Roller

    Grinding Roller

Technical Specifications

Model Feeding size
(mm)
Finished product size
(mm)
Capacity
(t/h)
Grinding ring diameter
(mm)
Number of grinding roller Power of main machine
(kW)
Blower power
(kW)
Analyzer power
(kW)
H5M115 <25 0.25-0.015 1.2-15 1220 4 55 75 15
H5M145 <30 0.25-0.038 2-26 1570 4 90/110 132 18.5/22
H5M178 <35 0.25-0.038 3-38 1950 4 185/200 200/220 30/37
H5M198 <35 0.25-0.038 6-45 2130 4/6 280/315 280/315 45/55
H5M218 <40 0.25-0.038 7-55 2340 4/6 315/355 315/355 55/75

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Capacity
(t/h)
Power of main machine
(kW)
H5M115 1.2-15 55
H5M145 2-26 90/110
H5M178 3-38 185/200
H5M198 6-45 280/315
H5M218 7-55 315/355

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
