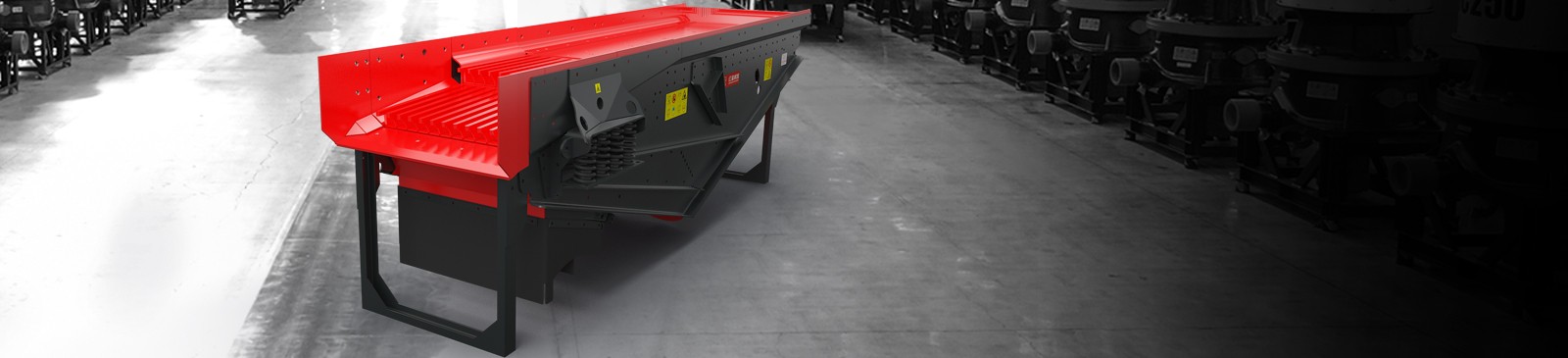

HMF series motor vibrating feeder is the special products launched by our company, which is suitable for feeding stone, building materials and metallurgical mines to small and medium-sized primary crushing equipment. It is compact in structure, strong in impact resistance, and uses a vibration motor as the vibration source. It is easy to maintain during use, with low failure rate, and is greatly convenient for on-site adjustment and production maintenance.
Compact structure and beautiful appearance;
Vibration motor drive, stable performance, simple adjustment, long maintenance cycle;
Wear- resistant grate and finger like rod can be selected according to site materials to avoid blockage.
The lower part of the castor bar is equipped with a standard discharge port to directly collect the materials under the screen to the belt;
Screen mesh can be selected at the lower part of the castor bar to fine screen the waste materials and soil, so as to improve the utilization rate of raw materials

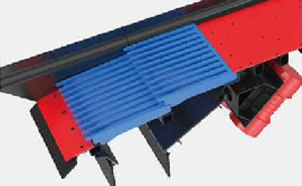

Targeted Grate Bar Selection

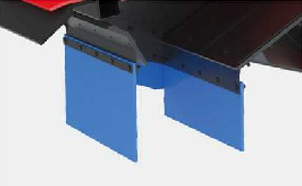

Discharge Port

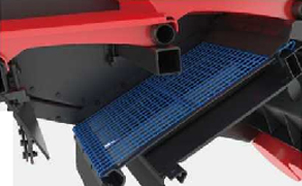

Screen
Technical Specifications
Note:1. The model suffix S means the additional screen. Example: HMF0832S, which is a type with a screen under the grate bar;2. The maximum feeding capacity is for dry materials with a bulk density of 1.6t/m³, for reference only.
| Model | Max.Feeding size (mm) | Max.Feeding capacity (t/h) |
| HMF0832 | 450 | 300 |
| HMF0832S | 450 | 300 |
| HMF1042 | 500 | 400 |
| HMF1042S | 500 | 400 |
| HMF1148 | 700 | 500 |
| HMF1148S | 700 | 500 |
Note:1. The model suffix S means the additional screen. Example: HMF0832S, which is a type with a screen under the grate bar;2. The maximum feeding capacity is for dry materials with a bulk density of 1.6t/m³, for reference only.
