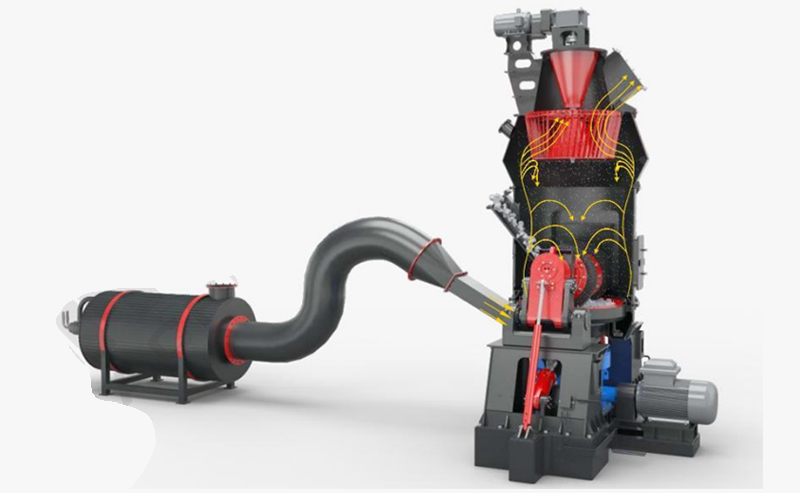

HLM series vertical grinding machine is a large advanced and energy-saving grinding product developed by Hong xing Group using the world's advanced bed grinding and some external technology, combined with more than 40 years of grinding and manufacturing experience of Hong xing Group. It integrates grinding, grading, drying and conveying. It has independent intellectual property rights, and it score technology and economic indicators have reached the international advanced level.
Widely used in cement, building materials, coal energy, iron and steel metallurgy, non-metallic ore, electric power and other industries, suitable forcement raw material, clinker, desulfurization lime powder, slag, steel slag manganese ore, coal and other materials grinding processing.
The powder sorting machine with dynamic and static structure has higher efficiency.
The hydraulic maintenance device can easily turn the roller out of the machine, and the replacement of the roller sleeve and the main-tenance of the roller are convenient and fast.
The iron content in the product is very small, which effectively ensures the product whiteness and purity of the material.
The grinding roller and grinding disc are made of special materials, which can flexibly adjust the grinding pressure and are efficient and energy-saving.
By adjusting the hotair temperature, the drying requirements of materials with df ferent humidity can be met, and the maximum drying humidity of materials can be met as high as 15%.
No dust spillage, reliable sealing, and dust removal efficiency as high as 99. 9%.
Powder Sorting Machine
Limiting Device

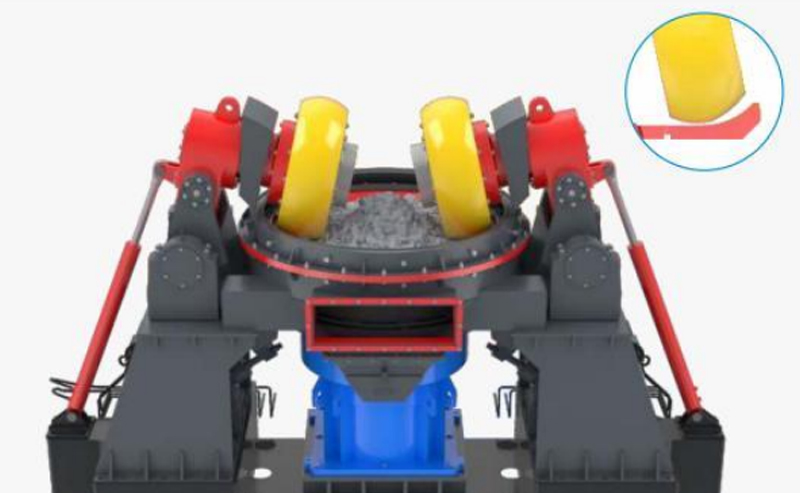

Hydraulic Maintenance Device
Technical Specifications
Note: The grindability (Bond) index of raw materials is less than or equal to 13kw/t
| Specifications | Capacity(t/h) | Main motor power(kW) |
| HLM1300K | 10-40 | 200 |
| HLM1500K | 13-50 | 280 |
| HLM1700K | 18-70 | 400 |
| HLM1900K | 20-85 | 500 |
| HLM2200K | 35-135 | 800-900 |
| HLM2400K | 40-160 | 900-1120 |
| HLM2800K | 50-200 | 1120-1250 |
| HLM3400K | 70-260 | 1800-2000 |
| HLM3700K | 90-320 | 2500-2800 |
Note: The grindability (Bond) index of raw materials is less than or equal to 13kw/t
