HCG series gyratory crusher integrates mechanical, hydraulic, electrical, automation and intelligent control technologies. It is a new type of coarse crushing equipment with large capacity, high efficiency and intelligence, which is comparable to the international advanced gyratory crusher. Compared with the crusher, the crushing efficiency is high, the use cost is low, and the maintenance and adjustment are convenient, which can provide users with a more intelligent and ultra-large capacity coarse crushing solution.

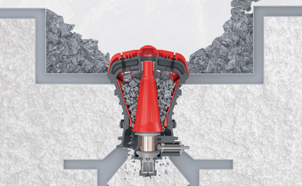

The gyratory crusher is mainly composed of the beam part, the upper, middle and lower frame parts, the moving cone part, the eccentric sleeve part, the transmission part and the hydraulic cylinder part. When the equipment is working, the motor drives the horizontal shaft to rotate, the horizontal shaft drives the eccentric sleeve to rotate through the gear, and then the eccentric sleeve drives the moving cone to swing in a circle, so as to continuously squeeze and crush the stones.

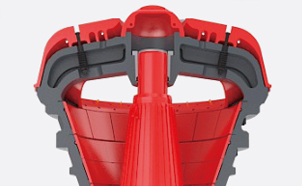

The key to the production capacity of the equipment lies in the cavity design of the equipment. The HCG gyratory crusher has a fine crushing cavity design to ensure stronger production capacity, larger feed particle size and longer liner life;
The addition of the intelligent control system effectively reduces the frequency of equipment overload and ensures that the equipment can achieve greater throughput and lower failure rate;
As a super-large equipment, HCG gyratory crusher is designed with special attention to the convenience of maintenance, and is equipped with automatic lubrication and hydraulic system.
Through the Internet of Things technology, the operating status of the crusher can be obtained in real time, such as the load situation, the usage of the liner, and the frequency of failures.
The high-strength frame design extends its service life, making it safe and trouble-free in the worst crushing production conditions.
The balanced design of the eccentric bushing makes the crusher work more smoothly; The eccentric bushing adopts cast copper sleeve thereby having a large bearing capacity and long service life.
Technical Specifications
Model | Feeding opening size(mm) | Max.Feeding size(mm) | Adjustment range of discharge port(mm) | Capacity(t/h) | Power(kw) | Dimensions L×W×H(mm) |
HCG4265 | 1065 | 900 | 152-177 | 2354-4133 | 450 | 3940×4170×6900 |
HCG5065 | 1270 | 1050 | 152-177 | 2414-4226 | 450 | 4460×4430×7610 |
HCG5475 | 1370 | 1150 | 152-203 | 2908-5018 | 600 | 4930×4925×8410 |
HCG6275 | 1575 | 1350 | 152-203 | 2913-6235 | 600 | 5580×5250×9090 |
HCG6089 | 1525 | 1300 | 177-229 | 4576-8359 | 750 | 5590×5445×10470 |
HCG60110 | 1525 | 1300 | 177-305 | 5579-14082 | 1500 | 6200×5940×11390 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Model | Feeding opening size(mm) | Max.Feeding size(mm) | Capacity(t/h) |
HCG4265 | 1065 | 900 | 2354-4133 |
HCG5065 | 1270 | 1050 | 2414-4226 |
HCG5475 | 1370 | 1150 | 2908-5018 |
HCG6275 | 1575 | 1350 | 2913-6235 |
HCG6089 | 1525 | 1300 | 4576-8359 |
HCG60110 | 1525 | 1300 | 5579-14082 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
