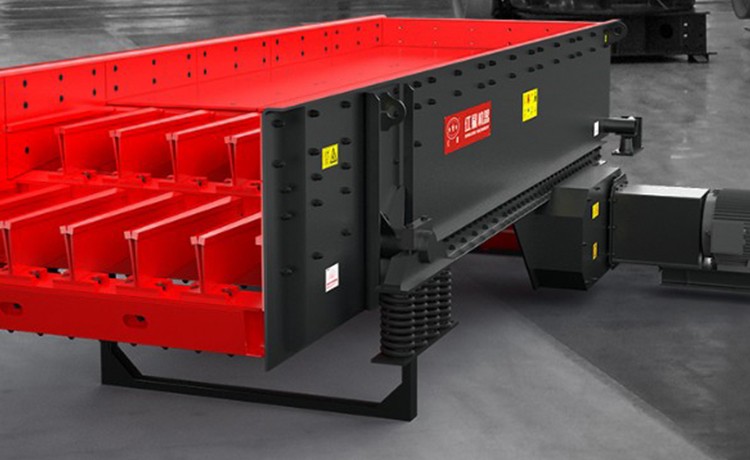

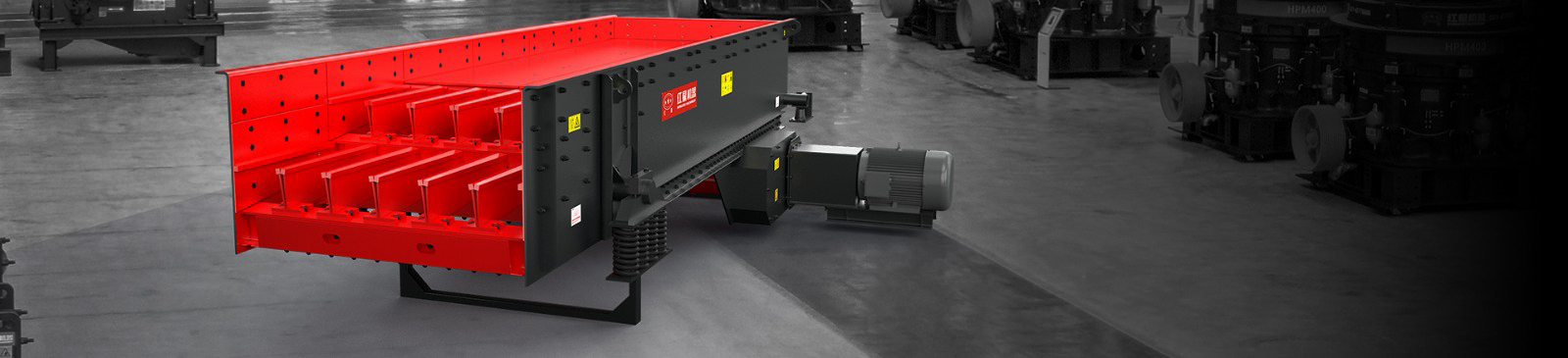

HSF series heavy rod vibrating feeder-designed according to heavy working conditions, suitable for feeding large and medium-sized primary crushing equipment to stone, building materials and metallurgical mines. The structure is compact, the impact resistance is strong, the maximum feeding size is 1500mm, and the maximum feeding capacity is 2000 tons/hour.
The design of the external eccentric block makes the adjustment of the feeder amplitude convenient and fast. The independent wear-resistant bars make the gap between the bars can be adjusted at will to maximize the size of the material entering the crusher, increase the crusher's production capacity and reduce energy consumption.
The vibration intensity of the HSF series feeder is as high as 4.5G, reaching the international leading level. The higher vibration intensity ensures reliable feeding performance.
HSF series can meet different feeding requirements of 400-2000t, and the maximum feeding size is 700mm-1500mm, providing you with a comprehensive range of selection.
The thin oil lubrication system with a maintenance period of 1200h-1500h greatly reduces the maintenance time of the equipment.

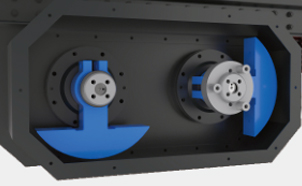

By adding or subtracting counterweights on both sides of the vibrator, the amplitude of the equipment can be quickly adjusted.

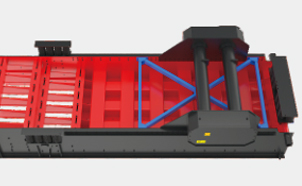

The HSF series feeder is specially designed with an X-shaped frame at the connection between the vibrator and the box, which improves the rigidity of the box and meets the rigidity requirements of the equipment under high vibration intensity.
The HSF series feeder adopts a direct drive structure with a motor with an elastic coupling, and an optional frequency converter can be used to adjust the speed of the equipment.
Technical Specifications
| Model | Trough Size (mm) |
Lendth Of The Bar (mm) |
Maximum Feeding Size (mm) |
Application | Maximum Processing Capacity (o°) |
Power (kw) |
| HSF1040 | 1000×4000 | 1×1200 | 700 | Fixed/Mobile | 400-840 | 15 |
| HSF1245 | 1200×4500 | 1×1200 | 800 | Fixed/Mobile | 500-1080 | 22 |
| HSF1262(S) | 1200×6200 | 2×900 | 800 | Fixed | 500-1080 | 22 |
| HSF1345 | 1300×4500 | 1×1200 | 900 | Fixed/Mobile | 750-1150 | 22 |
| HSF1362(S) | 1300×6200 | 2×900 | 900 | Fixed | 750-1150 | 30 |
| HSF1562(S) | 1500×6200 | 2×900 | 1000 | Fixed | 800-1320 | 30 |
| HSF1862(S) | 1800×6200 | 2×900 | 1200 | Fixed | 1040-1560 | 37 |
| HSF2162 | 2100×6200 | 2×900 | 1500 | Fixed/Mobile | 1200-1860 | 37 |
| HSF2462 | 2400×6200 | 2×900 | 1500 | Fixed | 1360-2040 | 2×30 |
the types with （S） means you can choose additional sieve layer
| Model | Maximum Feeding Size (mm) |
Maximum Processing Capacity (o°) |
| HSF1040 | 700 | 400-840 |
| HSF1245 | 800 | 500-1080 |
| HSF1262(S) | 800 | 500-1080 |
| HSF1345 | 900 | 750-1150 |
| HSF1362(S) | 900 | 750-1150 |
| HSF1562(S) | 1000 | 800-1320 |
| HSF1862(S) | 1200 | 1040-1560 |
| HSF2162 | 1500 | 1200-1860 |
| HSF2462 | 1500 | 1360-2040 |
the types with （S） means you can choose additional sieve layer
