HLMC Series Line Spray Off-line Pulse Dust Collector-HXZG

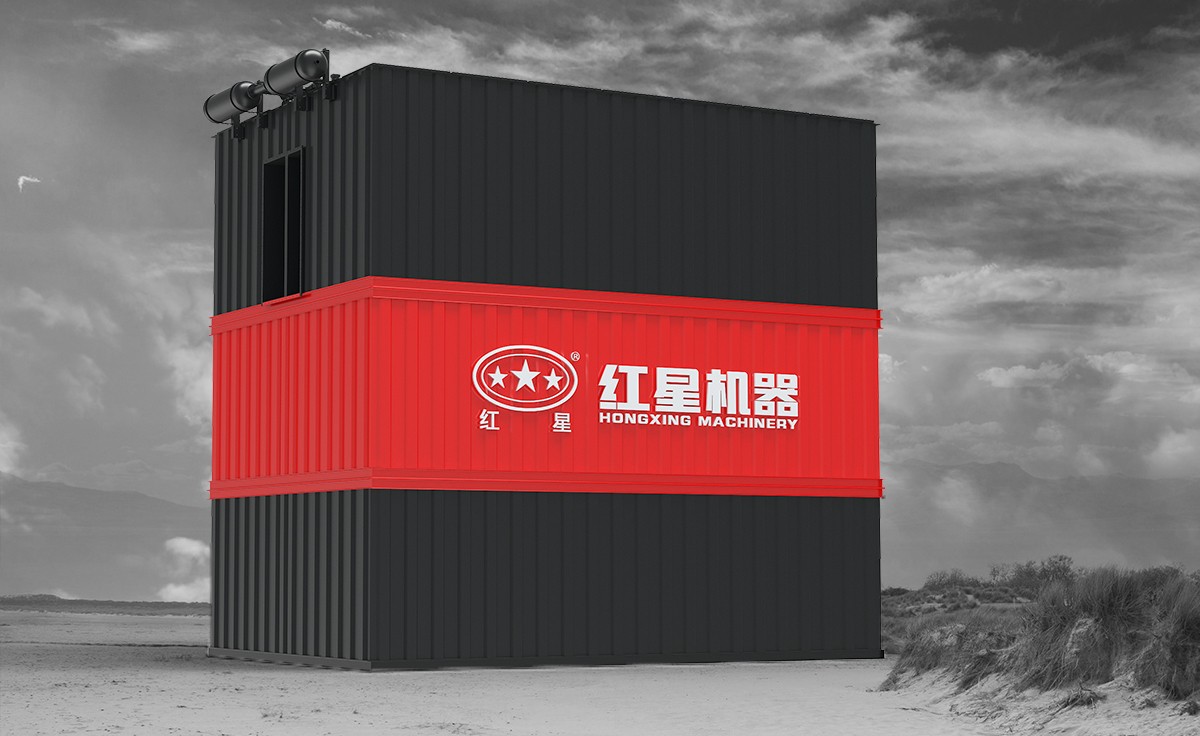

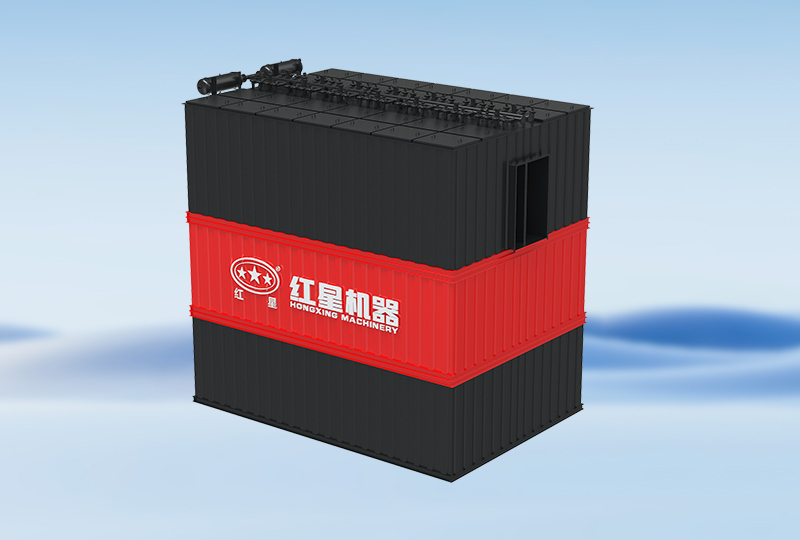

HLMC Series Line Spray Off-line Pulse Dust Collector

HLMC series line jet off-line pulse dust collector is a new and efficient bag dust collector developed on the basis of conventional pulse bag dust collector.

HLMC line jet off-line pulse dust collector is serving casting, metallurgy, machinery, electric power, building materials, mining, cement, chemical industry and other industries with its excellent performance. It is suitable for integrated dust collection with large air volume, high dust concentration and limited site, such as: sand making building and sand making line site compact occasions.

request a quote e-mail

Advantages

Small floor area
High degree of automation
Good cleaning effect
Stable performance

Technical Specifications

Model	Processing air volume (m³/h)	filtration velocity (m/min)	Total filtering area (m²)	Net filtering area (m²)	Dust concentration of imported air (g/Nm³)	Dust concentration of outlet air (g/Nm³)	Clean compressed air
Model	Processing air volume (m³/h)	filtration velocity (m/min)	Total filtering area (m²)	Net filtering area (m²)	Dust concentration of imported air (g/Nm³)	Dust concentration of outlet air (g/Nm³)	Pressure (Pa)	Air consumption(Nm³/min)
HLMC1000	48000~120000	0.8~2.0	1100	1000	<1000	<0.02	(5~7) x 10⁵	2.1
HLMC1400	67200~168000		1500	1400	<1000	<0.02		2.1
HLMC1700	81600~204000		1820	1700	<1000	<0.02		3
HLMC2100	100800~252000		2280	2100	<1000	<0.02		3

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Processing air volume (m³/h)	filtration velocity (m/min)	Total filtering area (m²)	Dust concentration of imported air (g/Nm³)
HLMC1000	48000~120000	0.8~2.0	1100	<1000
HLMC1400	67200~168000		1500	<1000
HLMC1700	81600~204000		1820	<1000
HLMC2100	100800~252000		2280	<1000

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
